TECHNİCAL SPECİFİCATİONS

  • Bending Speed: 9.5 Rpm/min
  • Max.bending moment: 3114 Nm
  • Power : 3 KW
  • Voltage : 380 V 50-60 HZ
  • Operation Type : Manuel and Automatic
  • Electromechanic pedal control
  • The bending switch is direction controlled
  • Different radius of pulley wheels to bend intended radius
  • Emergency stop button
  • Bending angle settings can be adjusted from the holes on the bending flanges
  • Stirrup, bent bar and hook can easily bended
  • Pin holed and adjusting slotted
  • With the help of the bending flanges and the adjusting slots it is easy make bent bar at the first try
  • Bending angle bar can be assembled by adjusting slots
 Code   DİMENSİONS
 L (mm.)    H (mm.)    D(mm.) (mm.)    Weight (Ad/Pcs)

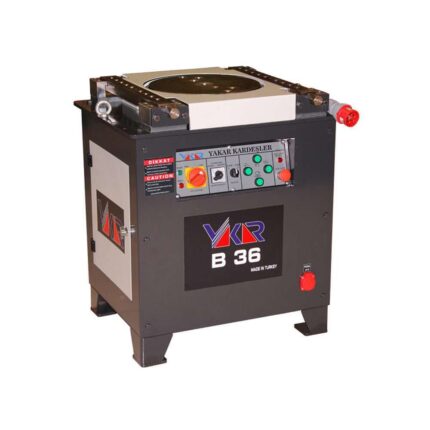

 17 00 36B  950  930  780  410  1



 BENDİNG CAPACİTY
 45 Kg/mm2   65 Kg/mm2   85 Kg/mm2
 Ø 36×1  Ø 28×1  Ø 26×1
 Ø 18×3  Ø 16×3  Ø 14×3
 Ø 14×4  Ø 14×3  Ø 12×3



Three different bending angles
Adjustable bending by using studs
Automatic or manuel operation
Clockwise or counterclockwise rotation
