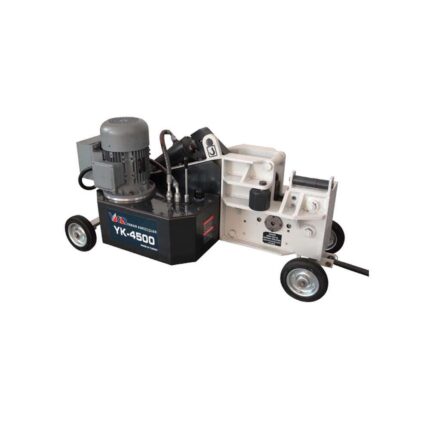

Description

TECHNİCAL SPECİFİCATİONS

  • Voltage : 380V 50-60 HZ
  • Power :  3 Kw
  • Speed : 1500 Rpm/min
  • Operation Type : Manuel and Automatic
  • Machine Height (including engine) : 67,5 cm
  • Cutting Height : 27,5 cm
  • Width : 60 cm
  • Length : 103,5 cm
  • Weight: 195 kg
 Code   DİMENSİONS
 L (mm.)   H (mm.)   D(mm.) (mm.)   Weight (Ad/Pcs)
 16 00 32H 1035 675 600 195   1



 CUTTİNG CAPACİTY
 45 Kg/mm2  65 Kg/mm2  85 Kg/mm2
 Ø 32×1 Ø 28×1 Ø 24×1
 Ø 18×2 Ø 18×2 Ø 16×2
 Ø 16×3 Ø 14×3 Ø 12×3
 Ø 10×5 Ø 10×5 Ø 8×5
 Ø 8×6 Ø 8×6 Ø 6×6



REPLACEMENT CUTTİNG EDGES

 Code Diemensions  Weight (Ad/Pcs)
 16 02 22H  48x48x12  0.40    1
 16 02 24H 48x48x14 0.50    1
 16 02 26H 58x48x12 0.50    1
 16 02 32H 65x65x17 1.88    1
 16 02 36H 78x78x18  1.50    1
 16 02 38H 83x83x24 2.40    1
 16 02 36M 77x77x18 1.50     1
 16 02 42M 77x77x18 1.50    1
 16 02 52M  88x88x24 2.80    1
 16 02 55M 88x88x24 2.80    1
