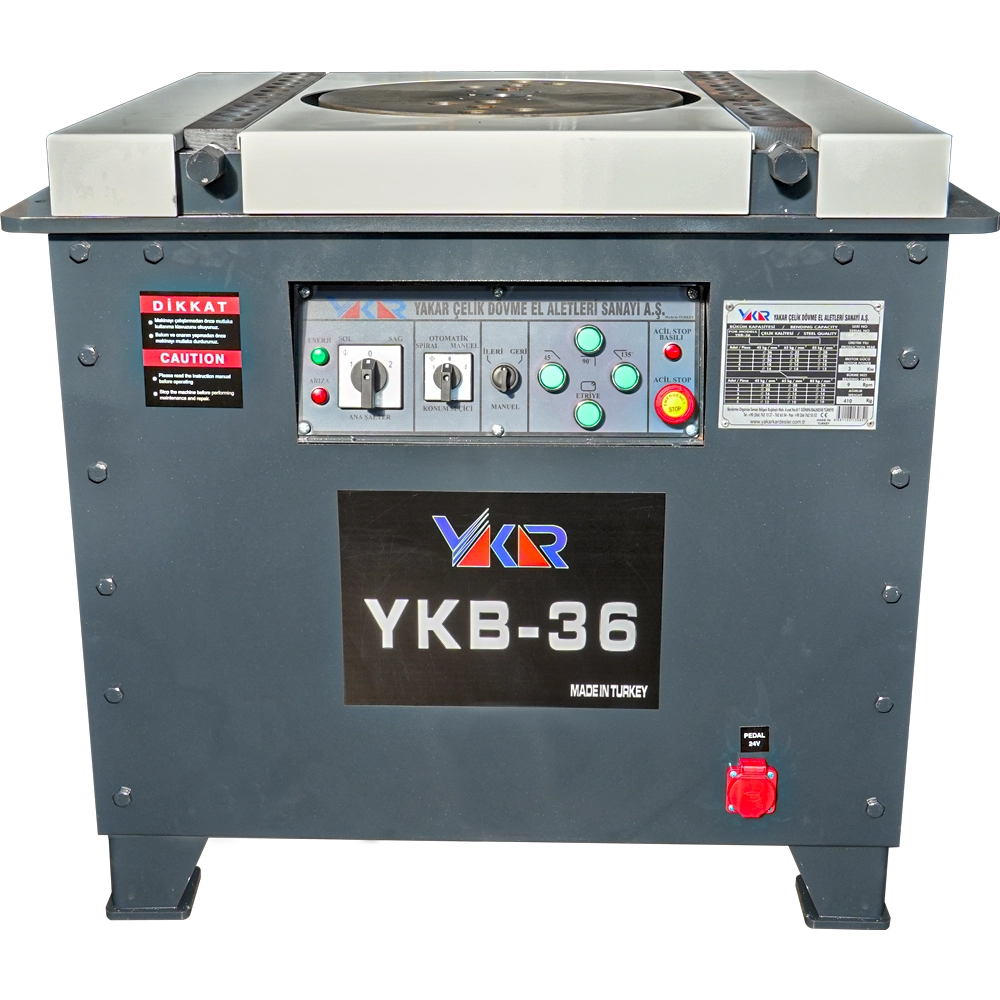

Yakar YKB36 არმატურის საღუნი დანადგარი
9,000.00₾
კოდი: 18303
| დიამეტრი |
36 mm. |
|---|---|
| ვოლტაჟი |
380 V |
ტექნიკური მახასიათებლები
- Bending Speed: 9.5 Rpm/min
- Max.bending moment: 3114 Nm
- Power : 3 KW
- Voltage : 380 V 50-60 HZ
- Operation Type : Manuel and Automatic
- Electromechanic pedal control
- The bending switch is direction controlled
- Different radius of pulley wheels to bend intended radius
- Emergency stop button
- Bending angle settings can be adjusted from the holes on the bending flanges
- Stirrup, bent bar and hook can easily bended
- Pin holed and adjusting slotted
- With the help of the bending flanges and the adjusting slots it is easy make bent bar at the first try
- Bending angle bar can be assembled by adjusting slots
| Code | DİMENSİONS |  | |||
| L (mm.) | H (mm.) | D(mm.) (mm.) | Weight (Ad/Pcs) | ||
| 17 00 36B | 950 | 930 | 780 | 410 | 1 |
| BENDİNG CAPACİTY | ||
| 45 Kg/mm2 | 65 Kg/mm2 | 85 Kg/mm2 |
| Ø 36x1 | Ø 28x1 | Ø 26x1 |
| Ø 18x3 | Ø 16x3 | Ø 14x3 |
| Ø 14x4 | Ø 14x3 | Ø 12x3 |
Three different bending angles
Adjustable bending by using studs
Automatic or manuel operation
Clockwise or counterclockwise rotation
